Project Description

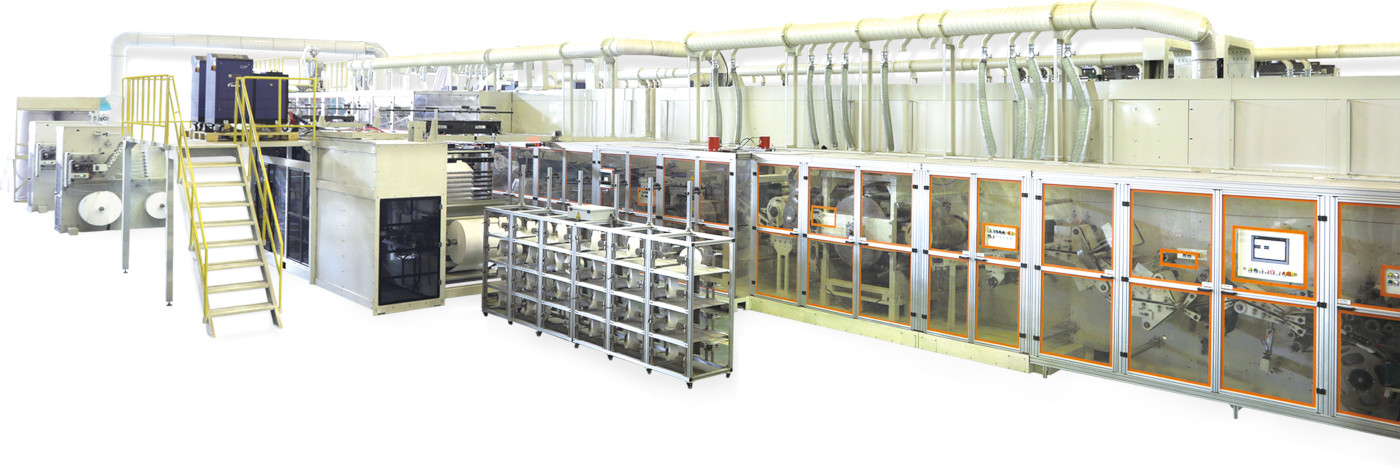

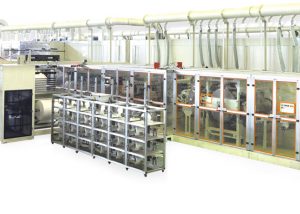

Advanced Adult Pants Machine
Speed 250-300 ppm
Technical Features
- The fluff core is an upper and lower double core structure, compatible production of ultra-thin composite core and semi composite core.
- Adopt independent single elastic tension control, leg elastic can be X-type.
- Leg elastic bonding is using ultrasonic bonding technology.
- Product detection system (including the weight, metal, appearance, position).
- Supply power: 380V 60HZ 3ph+N
- Command voltage: 24V DC
- Installed rated power:650~700 KW (Decided by final designs)
- Running power: 400-450KW (Decided by final design)
- Compressed air capacity: 7000 – 8000 NL/min, 6÷8 BAR (Decided by final design)
- Install space: Length 45 ~ 50 meter, Width: 12 ~ 15 meter, Height: 6.0 ~ 6.5 meters (Decided by final design)
- Machine hand: To be decided
- Machine color: To be decided
Diaper Drawings Produced by This Machine
